JS4x4 Diff Drops and Drop Boxes

  • Toyota Hilux (KUN) 2005-on Diff  Drops
  • Toyota Hilux (KUN) 2005-on Diff  Drops
  • Toyota Hilux (KUN) 2005-on Diff  Drops
Toyota Hilux (KUN) 2005-on Diff  DropsToyota Hilux (KUN) 2005-on Diff  DropsToyota Hilux (KUN) 2005-on Diff  Drops

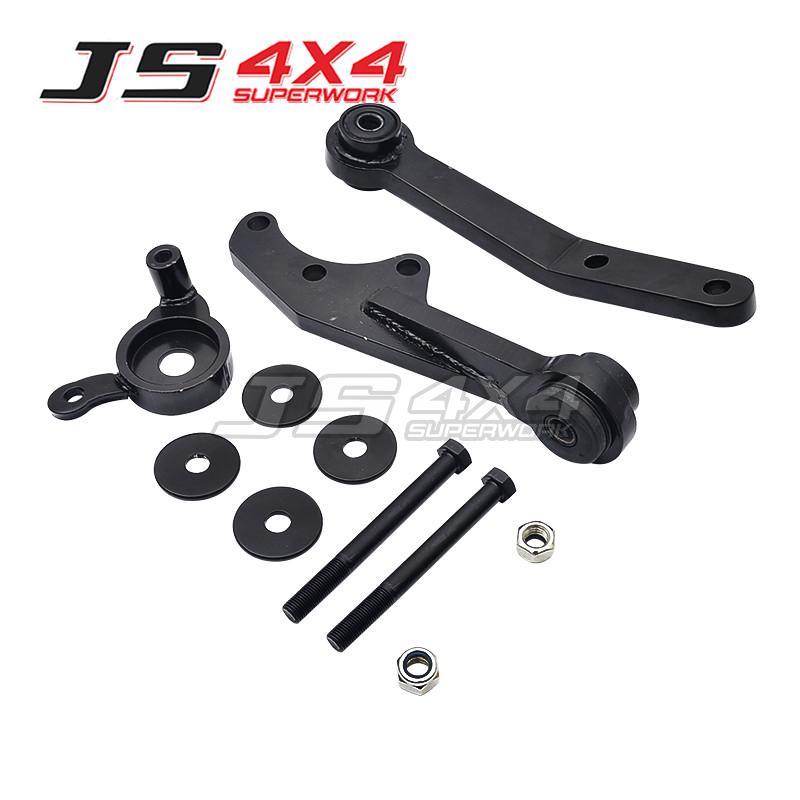

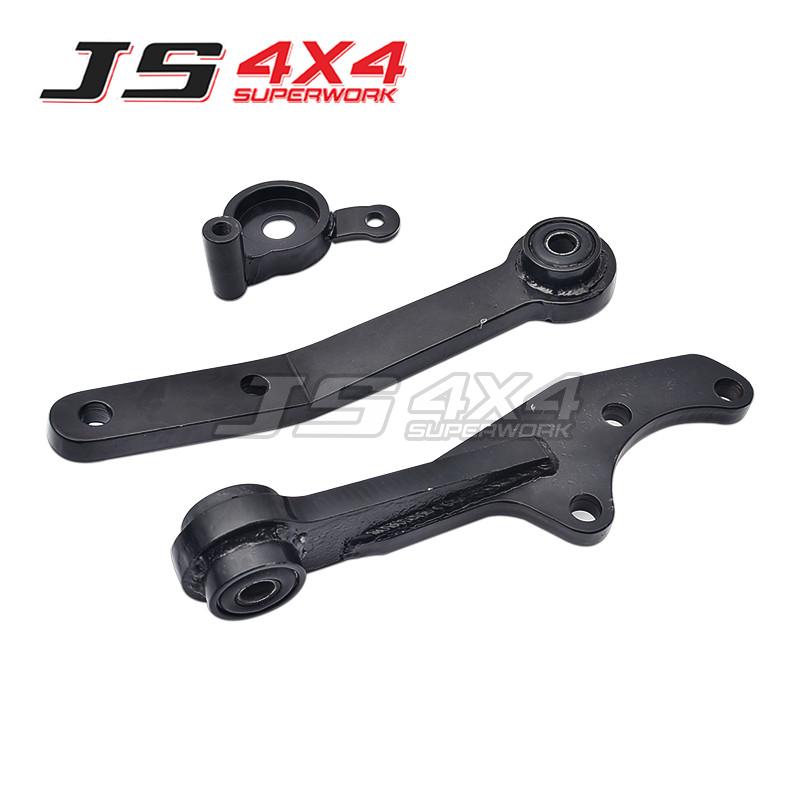

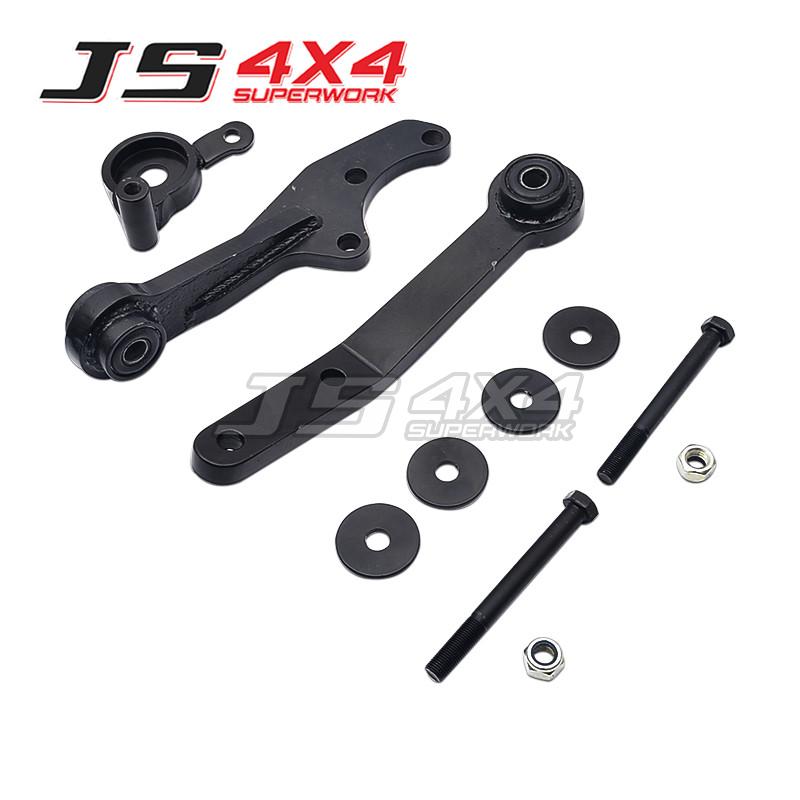

Toyota Hilux (KUN) 2005-on Diff Drops

  • Part Number;JS-Z4A
  • Toyota Hilux (KUN) 2005-on
  • Product description: Toyota Hilux (KUN) 2005-on Diff Drops
  • INQUIRY
When lifting IFS Vehicles, the Constant Velocity (CV) joints are put on an increased angle. This increased angle of the CV joint during operation can accelerate the wear on the joint, as well as putting additional stress on the CV boots leading to splitting and eventually premature failure of the CV. This wear is accelerated further if larger (wider) wheels and tyres are fitted.
The Aupart IFS Diff Drop Kits are application specific and supplied complete to get the job done. The bolt on kit corrects the geometry on the front driveshaft and CV’s, lowering the front diff by approx. 25mm, thus reducing the angles the CV joints need to operate on, and avoiding the expensive replacements of CV’s and boots. Allows the bash plate to be refitted.
